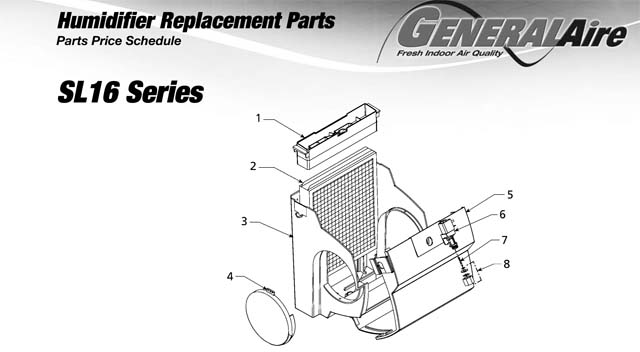

| Item |
Req’d |
Number |
Description of Part |
| 1 |
1 |
7600 |
16-4 Distributor Trough |
| 2 |
1 |
7002 |
990-13 Evaporator Pad |
| 3 |
1 |
7601 |
16-1 Humidifier Cabinet |
| 4 |
1 |
7602 |
16-5 Bypass Cover |
| 5 |
1 |
7603 |
16-2 Front Cover |
| 6 |
1 |
7604 |
16-20 Solenoid Valve Assembly |
| 7 |
1 |
7605 |
16-12 Strainer Screen |
| 8 |
1 |
7606 |
P236 Solenoid Fitting Hardware |
| |
|
|
Kit Includes: |
| |
|
|
P238 O-Ring |
| |
|
|
P233 Fitting Nut |
| |
|
|
P234 Fitting Spacer |
| |
|
|
P235 Fitting Grab Ring |
| |
|
|
PARTS NOT SHOWN |
| |
1 |
7162 |
P163 Hose Clamp |
| |
1 |
8022 |
800-UST Self Tapping Saddle Valve Kit |
| |
1 |
7607 |
16-21 Humidistat |
| |
1 |
7609 |
16-29 Humidistat Housing Kit |
| |
1 |
7118 |
727-58 24V Transformer (12VA) |
| |
1 |
7608 |
16-16 Parts Bag |
| |
1 |
7078 |
747-38 Water Supply Tubing Kit |
| |
1 |
7046 |
1099-16 Drain Tubing (15' of 5/8" I.D.) |
| |
1 |
7127 |
727-48 Lead Wire Ass’y (10' of Low |
| |
|
|
Voltage Wire w/Terminals) |
| |
1 |
7021 |
12500 Air Pressure Switch |
